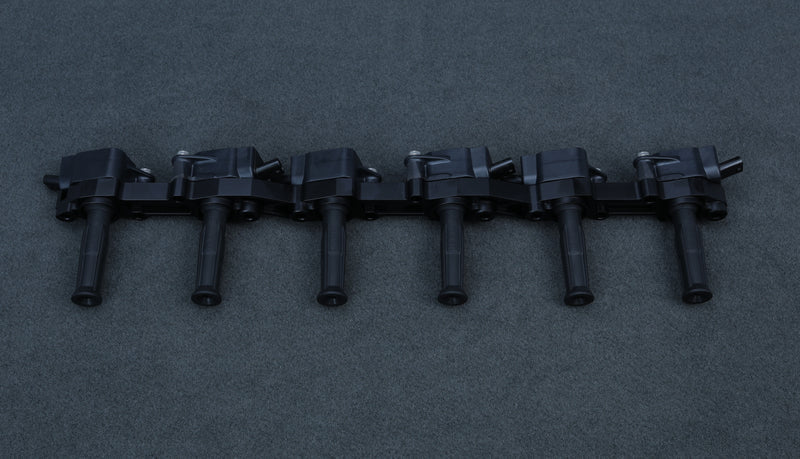

BО̄DAN SR20 ENGINE COIL KIT

The BŌDAN Ignition Coil Kit is designed to deliver improved ignition performance, increased ignition energy and reliable spark delivery for high-performance applications.

Available in Bosch and Thunder configurations, the system combines high-output ignition coils with motorsport-grade wiring, secure electrical connections and durable components designed for demanding operating environments.

Bosch Coil Kit

Performance

• Approximately 80 mJ ignition energy.
• Designed to improve combustion efficiency.
• Intended to improve startup performance.
• Intended to improve lean and partial-throttle combustion.

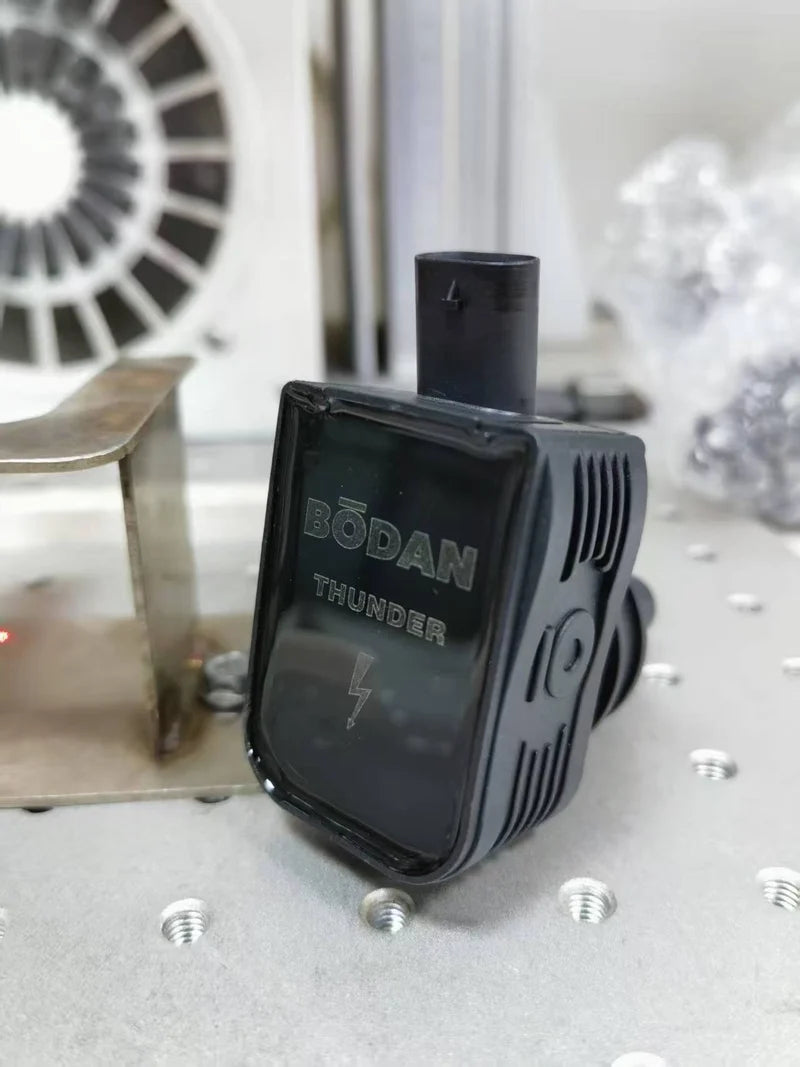

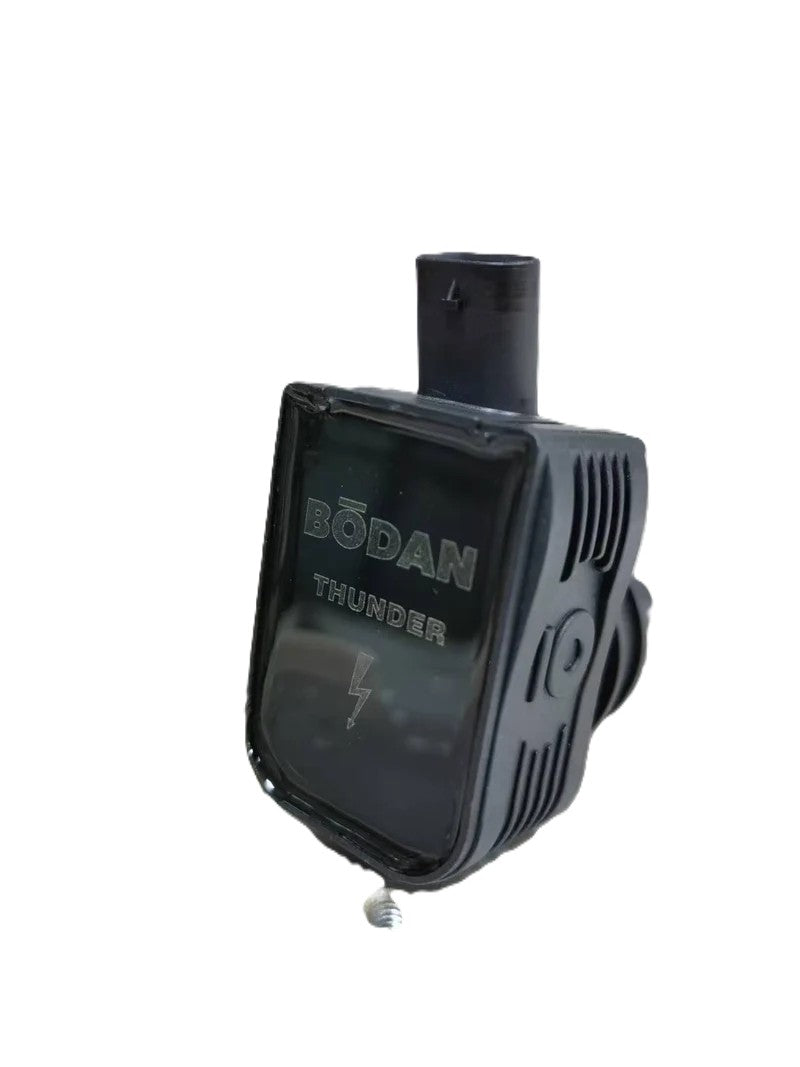

Thunder Coil Kit

Performance

• Approximately 130–140 mJ ignition energy.
• Designed to provide stronger combustion and ignition stability under load.
• Intended to improve startup and high-performance fuel-burn efficiency.

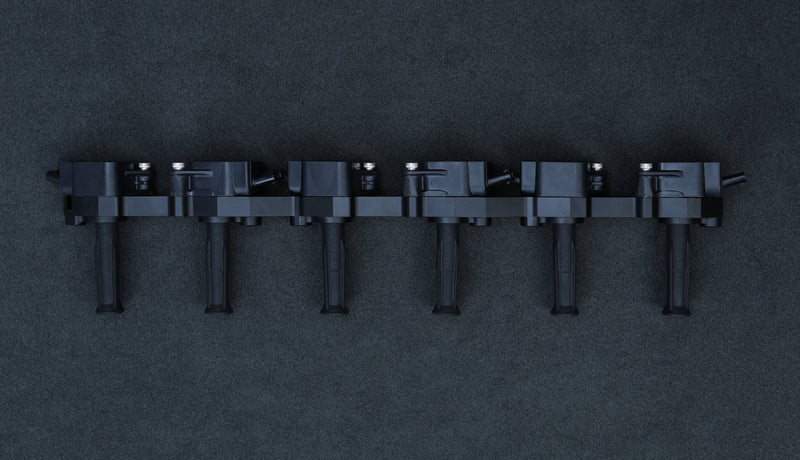

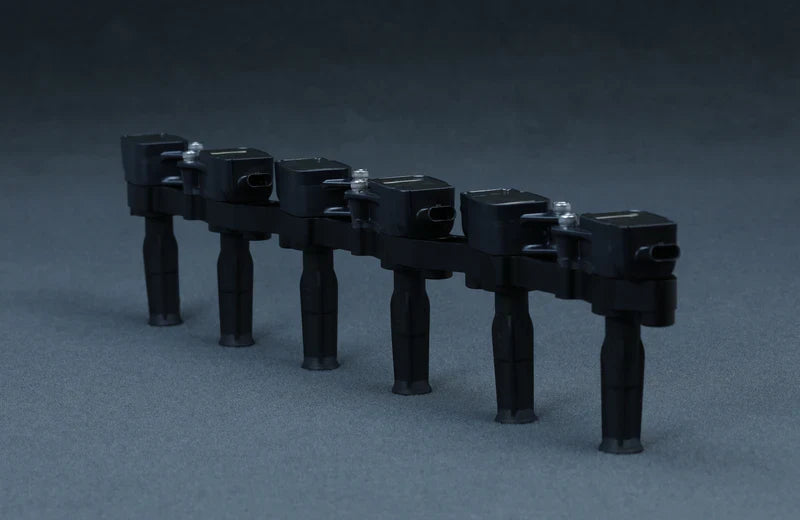

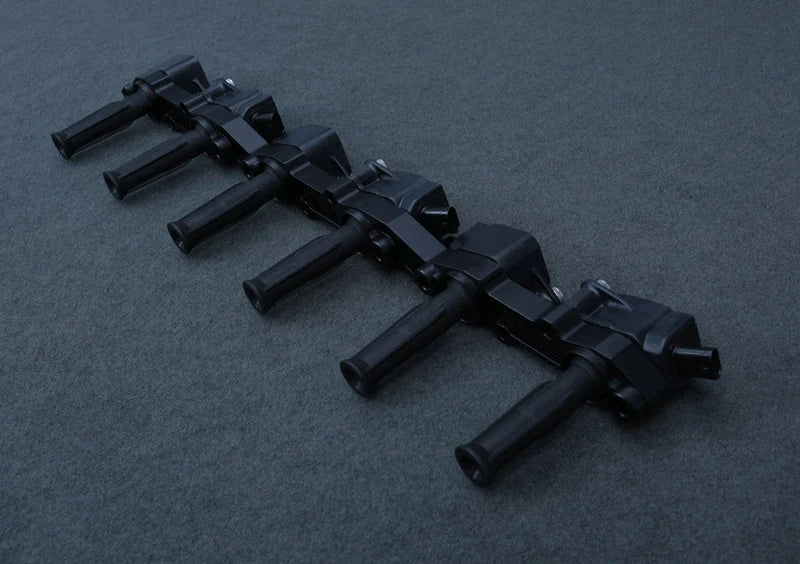

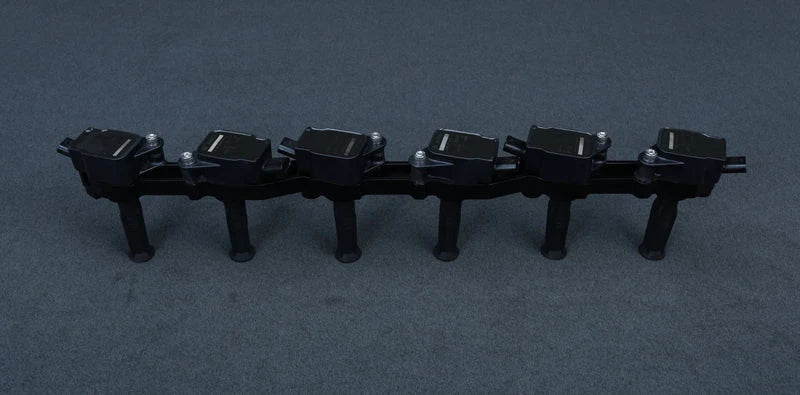

Adjustable Coil Design

The Thunder Coil Kit features a patent-pending adjustable coil design.

• Coils can be rotated to suit loom direction and engine-bay layout.
• Straight or angled positioning is possible.
• Position can be set and locked using an Allen key.
• Captive screws prevent hardware from falling out during removal.

Construction

• 6061 aluminium construction.
• Black anodised finish.
• Lightweight design.

Shared Coil Kit Features:

Connector & Compatibility

• Bosch and Thunder variants use the same connector design.
• The same loom and configuration can be used.
• Designed to fit stock ignition systems and aftermarket setups.

Gold-Plated Contact System

Gold-plated elements and contacts are designed to:

• Improve electrical conductivity.
• Reduce resistance at contact points.
• Reduce energy loss through heat.
• Help prevent corrosion at electrical contact surfaces.
• Support consistent spark delivery.

Coil Spring Design

• Larger-diameter coil springs.
• Protective coating.
• Multiple contact points.
• Designed to resist rust and corrosion in hot and humid environments.

Silicone Base

• High-quality silicone base.
• Operating temperature described as up to 250°C.
• Designed to provide strong clipping action and resistance to wear and tearing.

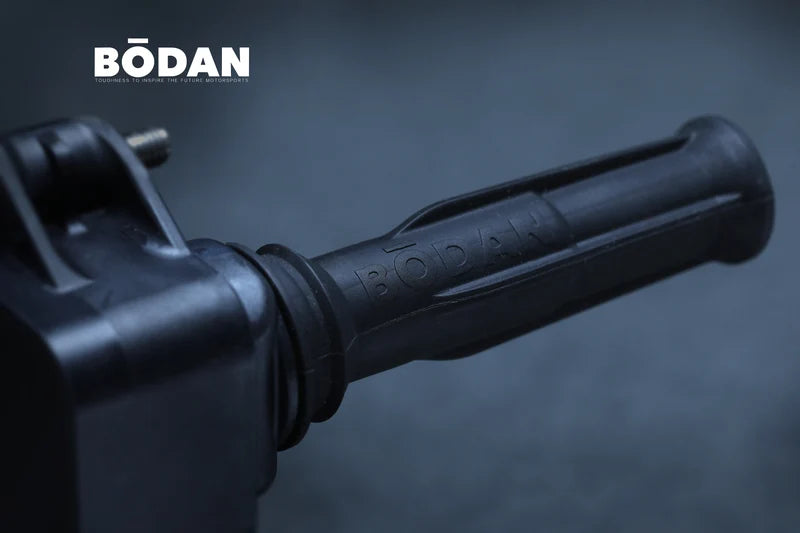

Waterproof Spark Plug Sleeve

• Padded sleeve design.
• Creates a watertight seal around the spark plug area.
• Designed to prevent water ingress and water collection around the spark plug tube area.

Hardware

• Stainless steel hardware.
• Designed to resist rust and corrosion.

Captive Bolt Design

A patent-pending design keeps the mounting bolt retained in the coil during removal, helping to prevent:

• Dropped hardware.
• Lost bolts.
• Bolts falling into the cylinder area.
• Incorrect bolts being used.

Electrical Connector

• Slim three-pin connector.
• Locking screw mechanism.
• Designed to prevent accidental disconnection.

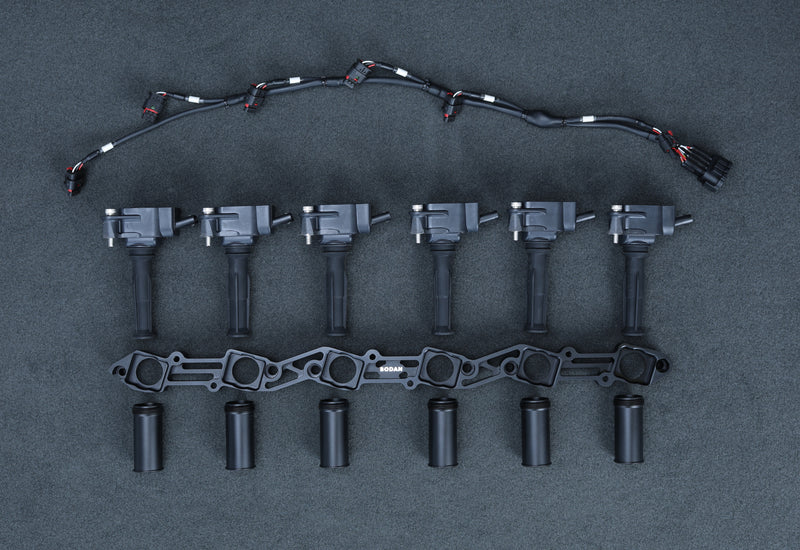

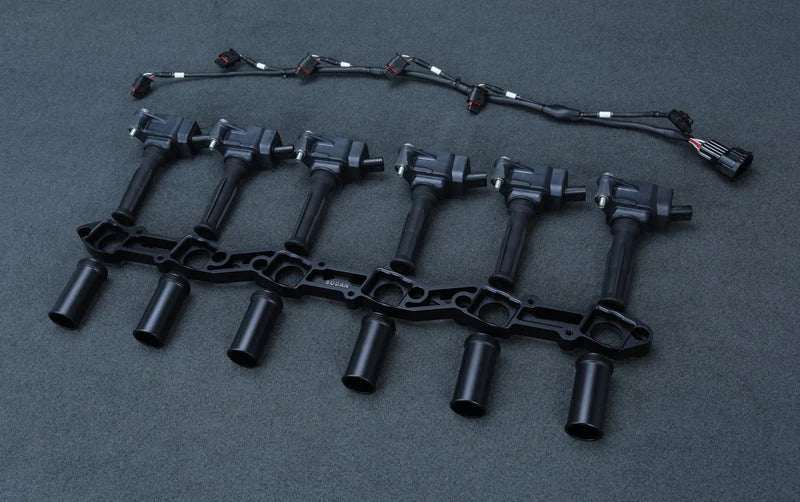

Wiring Harness

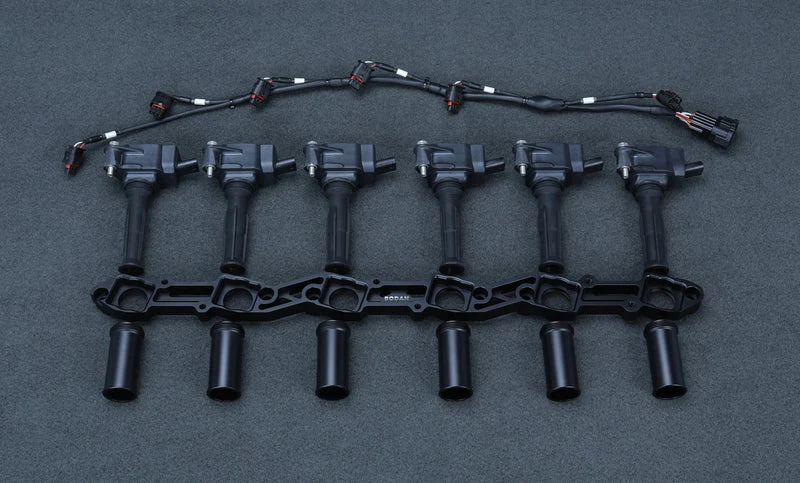

All coil kits are supplied with a wiring harness.

The wiring is described as:

• Motorsport-grade.
• Tefzel sealing.
• MIL-spec wiring.
• Designed for harsh motorsport and performance environments.

Compatibility

Engine Application: Nissan SR20

This listing is specifically for the Nissan SR20 engine.

A wiring harness is included with every coil kit.

Thunder Coil Kit – Dealer Installation & Tuning:

The BŌDAN Thunder Coil Kit is exclusively available through our authorised dealers, as it requires specialised tuning to achieve optimal performance.

If you're interested in the Thunder Coil Kit, please contact us to schedule your installation and tuning appointment.
